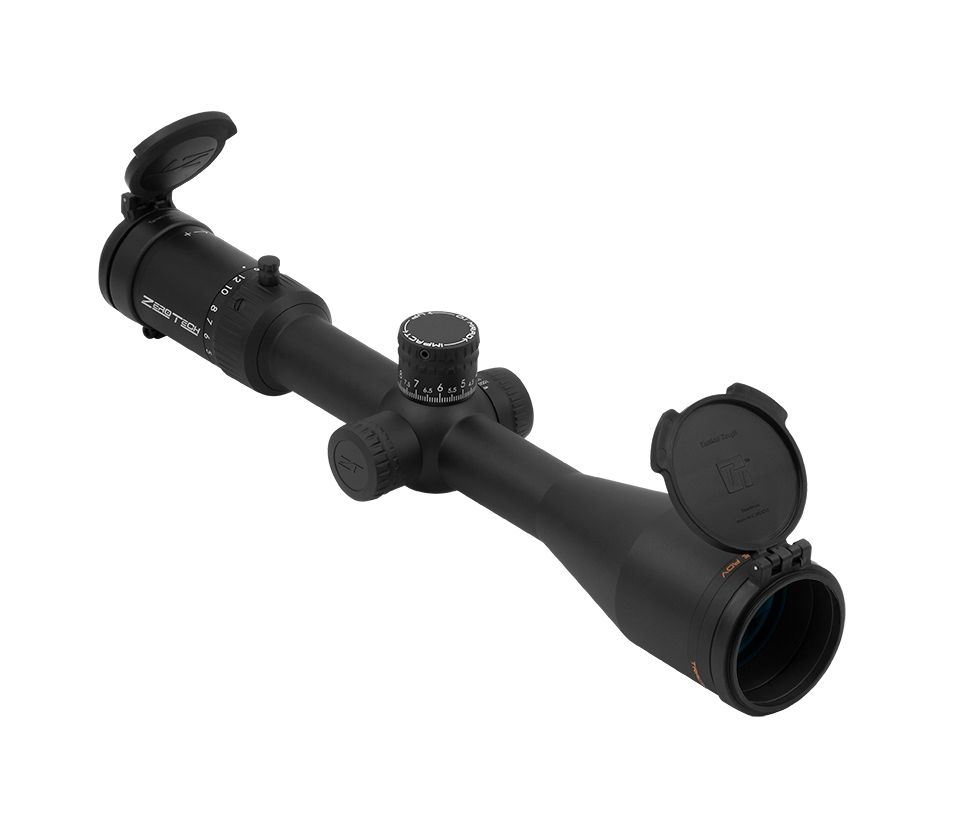

The TREMOR3™ reticle is designed to maximize the speed and accuracy of marksmen. Its unique use of patented features gives users the capability to quickly estimate the range to targets while also giving the user wind speed and drop correction information for fast and accurate Second Shot Corrections.
Focal Plane | First (FFP) |
Reticle calibrated magnification power (SFP only) | N/A |
Magnification Range | 4-24x |
Objective Lens Diameter | 50mm |
Maintube Diameter | 30mm |
Zero Stop | Yes |
Turret Index Value | 0.1 MRAD |
Internal Elevation Adjustment | 23 MRAD |
Internal Windage Adjustment | 20 MRAD |
Parallax Adjustment Range | 20 Meters – Infinity |
Exit Pupil Diameter | Low: 8.6mm; High: 2.1mm |
Eye Relief | 92mm |
Field Of View @100 Meters | Low:9.7m; High: 1.6m |
Objective Outer Diameter | 59mm |
Ocular Outer Diameter | 43.6mm |
Weight | 790g |
Available Reticles | RMG FFP Illuminated reticle TREMOR3™ FFP reticle* Made in Japan |
Illumination | Yes |
